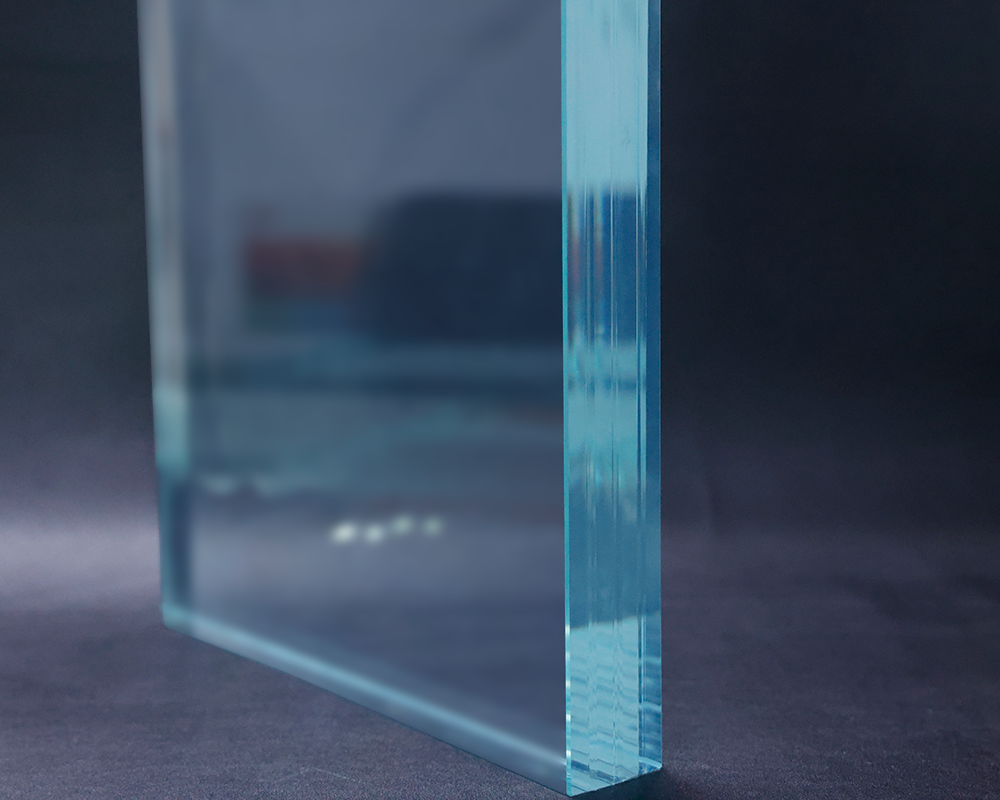

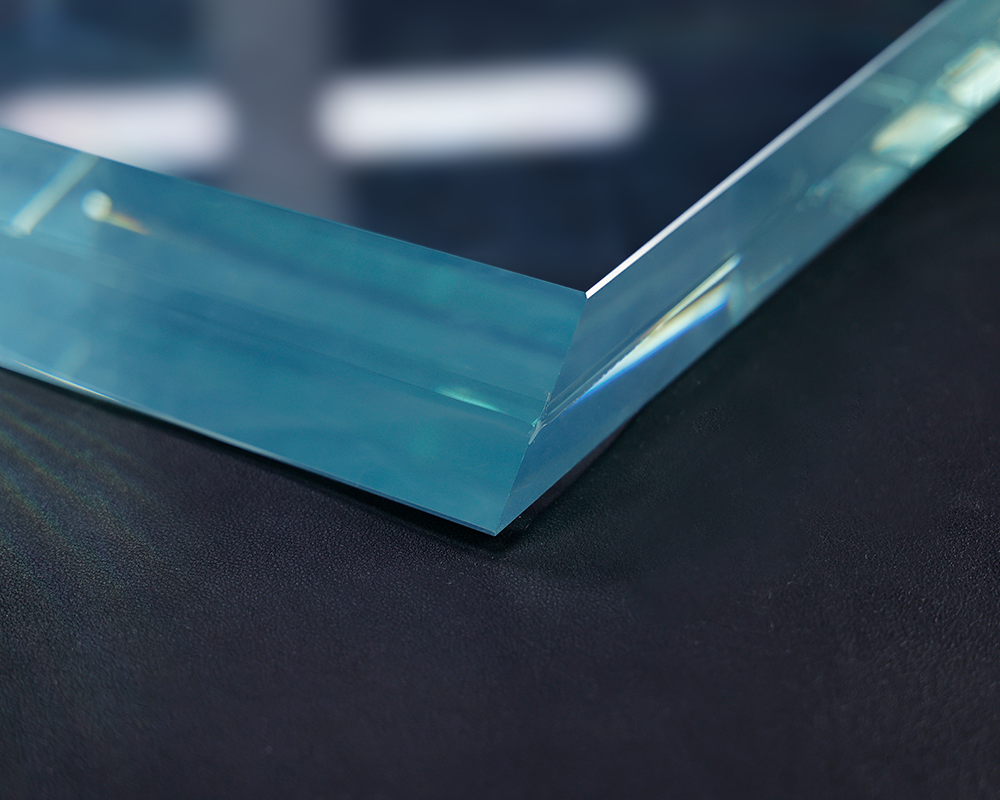

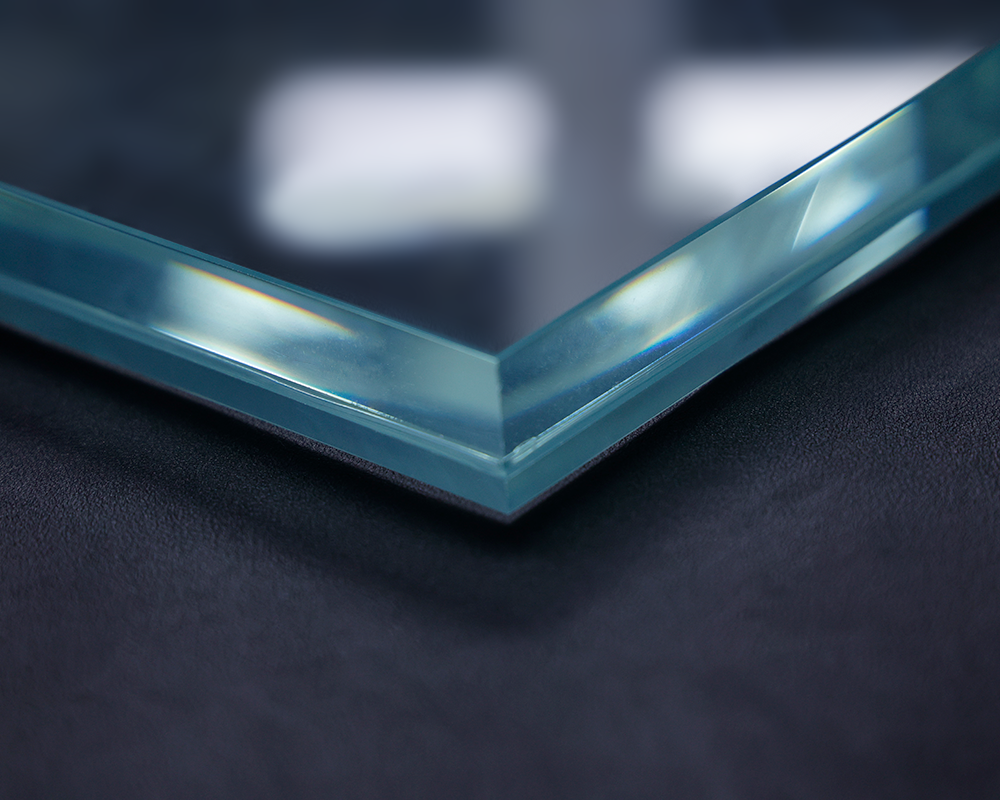

SGP Laminated Glass HJ-SG03

SentryGlas®Plus interlayer (SGP) for laminated safety glazing is the latest innovation of glass laminating products. It extends the performance of laminated glass beyond current technologies.

SentryGlas® Plus Interlayer offers five times the tear strength and 100 times the rigidity of conventional PVB interlayer. Because of its added strength, clarity, durability, fabrication and installation ease, it is an excellent candidate for demanding applications in the architectural market place. It can offer improved ballistic protection or thinner constructions than are now possible with conventional laminated glass.

Glass Max size: 3000mm*7500mm

Glass Min size: 100mm*100mm

Min curved radius: depend on the client’s requirement

Glass Thickness(mm): 3+3, 5+5, 6+6, 6+8, 8+10, 10+10, 10+12, 12+12, 15+15, 19+19 or triple glazing or multilayer

SGP Thickness:0.76mm, 0.89mm, 1.52mm, 2.28mm

Glass color: clear, ultra clear(low iron, crystal clear, star fire), F green, Ford blue, gray, Light Bronze, Deep Bronze, etc.

Packing: standard seaworthy wooden crates

Application



Interior Application: glass partition, shower glass, table top, windows, glass stairs, handrail, swimming pool fence, bullet proof glass, glass shelf, etc.

Exterior Application: glass skylight, glass dome, hotel, airport, green house, exhibition hall, shopping mall, gymnasium, museum, hospital, glass sun house, glass canopy, glass balcony, glass fence, pool glass fence, glass railing, glass balustrade, etc.

Quality Certificate

CE Certification

GB/9962-1999(Laminated glass standard)

GA165-1997(Bullet-proof glass standard)

UK-BS6206:1981

CCC (China Compulsory Certification)
